Reversible two-part hinge Musa

Features:

• Reversible two-part hinge for heavy-duty doors.
• Suitable for European standard windows and doors.

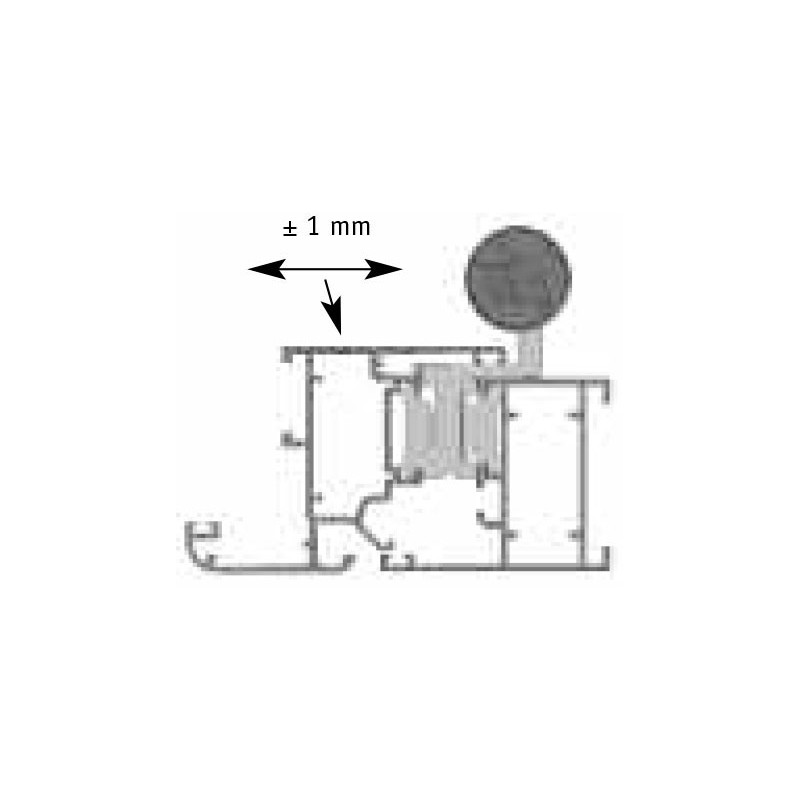

• Allows the frame-sash gap to be adjusted by ±1 mm with an eccentric adjusting bush, without removing the hinge.
• Fixed to the profiles with extruded aluminium clamping shoes and special M6 Allen-head screws.
• A nylon plug inserted in the eccentric bush fixes the hinge in the previously adjusted position.
• No machining required, reducing installation and fitting times.

Materials:

• Extruded aluminium hinges and clamping shoes.
• Stainless steel shaft.
• Zinc-plated steel screws.
• Self-lubricating nylon bush and plug.

Contents:

• 4 screws DIN 7991 M6x8
• 2 grub screws DIN 914 M6x10
• 2 extruded aluminium clamping shoes
• 1 eccentric bush
• 1 intermediate washer
• 1 fixing plug
• 1 grub screw DIN 914 M5x6

Finishes:

• Powder coated in RAL colours.
• Anodised.

Packaging:

Box of 25 units.
