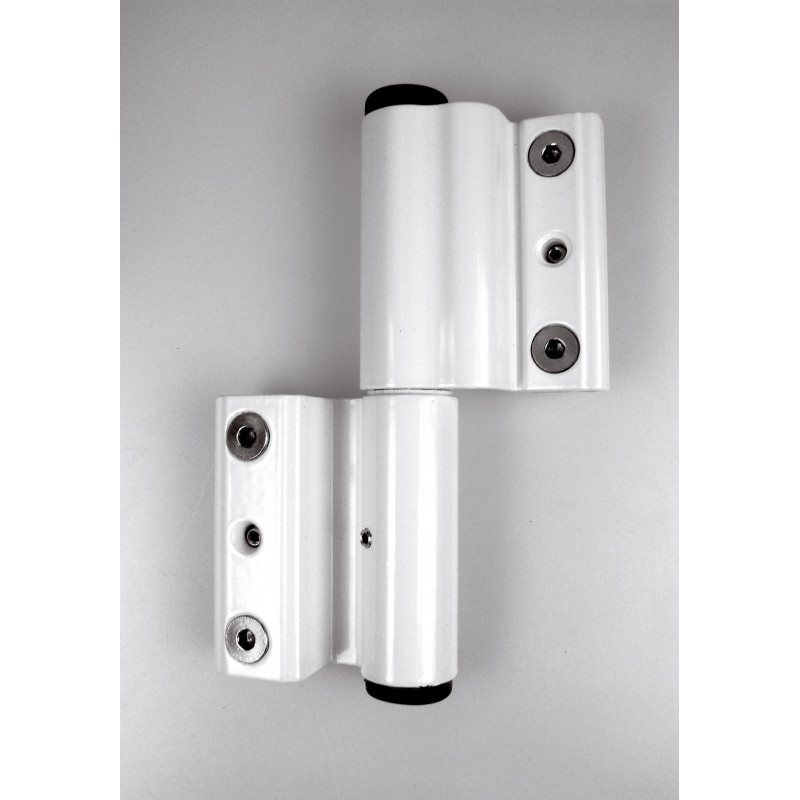

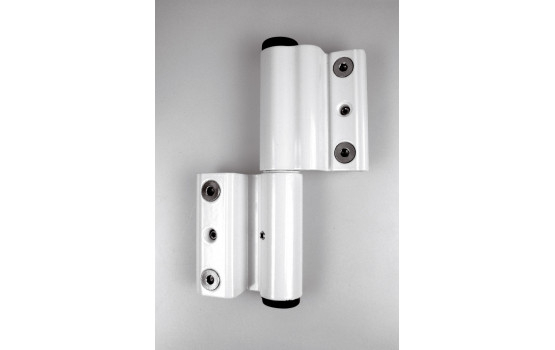

Reversible two-part hinge Musa-Xl

Features:

• Reversible two-part hinge for European standard heavy-duty doors.
• Allows the frame-sash gap to be adjusted by ±1 mm with an eccentric adjusting bush, without removing the hinge.
• Height adjustment has a useful travel of 4 mm and is carried out with a threaded grub screw in the lower body.
• Fixed to the profiles with extruded aluminium clamping shoes and special M6 Allen-head screws.
• A nylon plug inserted in the eccentric bush fixes the hinge in the previously adjusted position.

Materials:

• Extruded aluminium hinges and clamping shoes.
• Stainless steel shaft.
• Stainless steel screws.
• Nylon bush and plugs.

Contents:

• 4 special screws M6x13 mm.
• 2 grub screws DIN 914 M5x10 mm.
• 2 extruded aluminium clamping shoes
• 1 eccentric bush
• 1 intermediate washer
• 1 fixing plug
• 1 lower trim cap
• 1 grub screw DIN 914 M5x6 mm.
• 1 special grub screw M12x12 mm.

Finishes:

• Powder coated in RAL colours.
• Anodised.

Packaging:

Box of 10 units.
