Features:

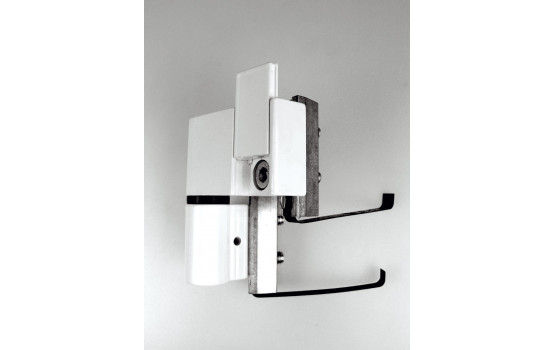

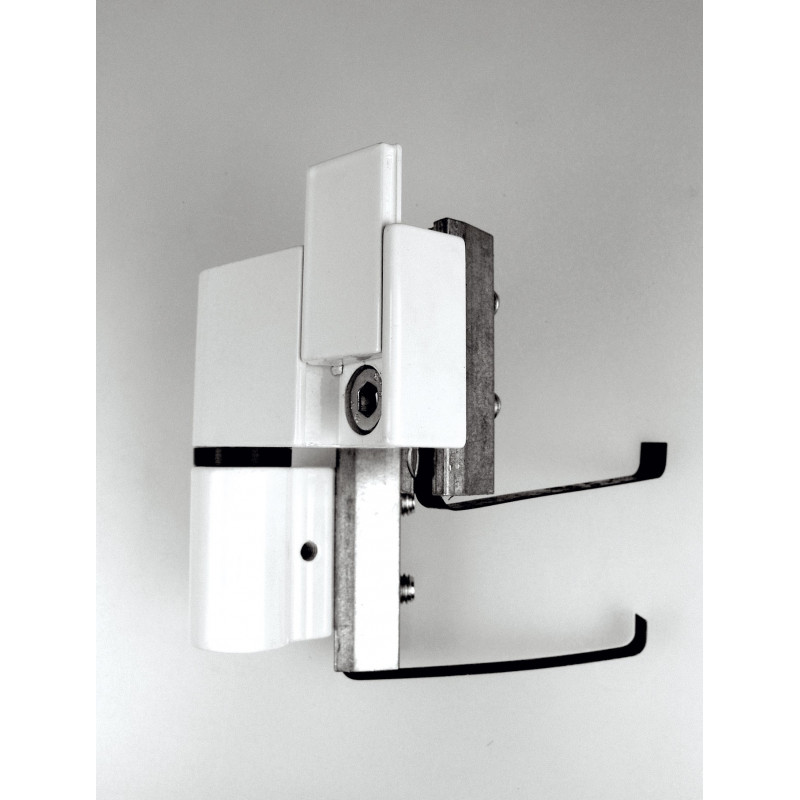

- Reversible hinge for security or armoured doors.

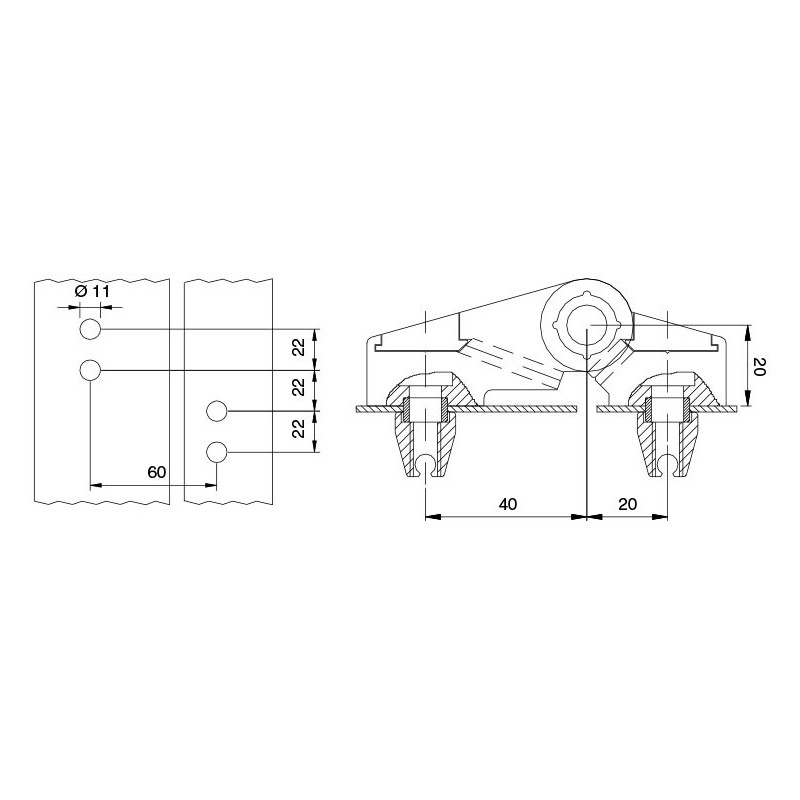

- Suitable for flush windows and doors with 60 mm centre distance. The eccentric nylon bush allows the frame-sash gap to be adjusted by ±1 mm.

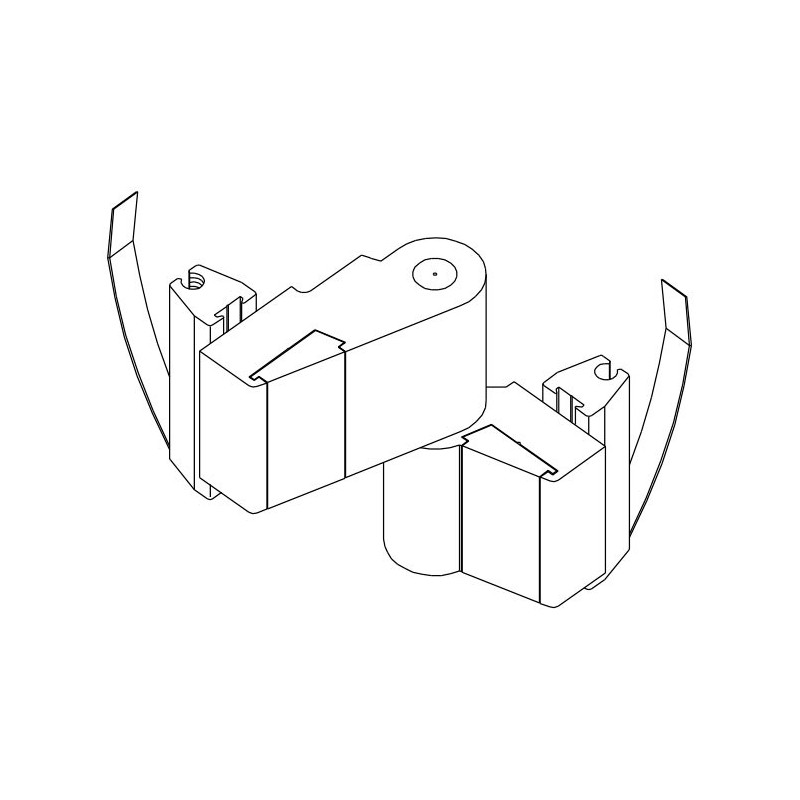

- Fixed to the profiles with Ø11 mm bushes. The 15x60 mm extruded aluminium clamping shoes are threaded at one end for easy insertion with a threaded rod.
- They also include a steel strip that fixes their position.
- The fixing screws are hidden by the cover, which is secured by a grub screw that cannot be reached from outside when the door is closed.
- The PP template can be used to machine the profiles (p. 32).
Materials:
- Extruded aluminium hinge, caps and clamping shoes.
- Stainless steel shaft.
- Zinc-plated steel screws.
- Nylon bushes.
Capacity:
- For doors up to 2,000 x 1,000 mm.
- Up to 120 kg: 2 units.
- From 120 kg: 3 units.
Contents:
- 1 stainless steel shaft.
- 4 zinc-plated steel screws M8x25.
- 2 stainless steel grub screws to secure the caps.
- 1 stainless steel grub screw to secure the shaft.
- 2 nylon bushes (centred and off-centre)
- 2 aluminium clamping shoes with steel strip.
- 4 Ø11 bushes.
Finishes:
- Anodised.
- Powder coated in RAL colours.
Packaging:
Box of 25 units
| Zinc-plated / Raw | Not available |
| Anodised matt silver | Available |
| Powder coated 9011 / 9016 | Available |
| Powder coated RAL / Anodised bronze / Stainless | Available |
