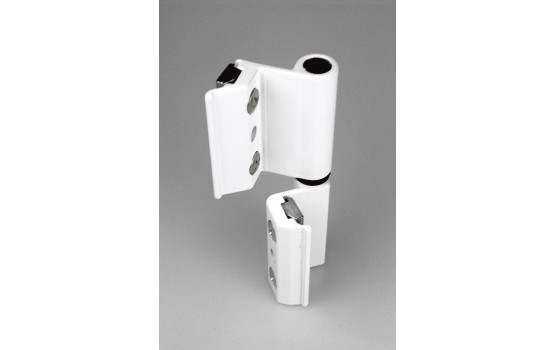

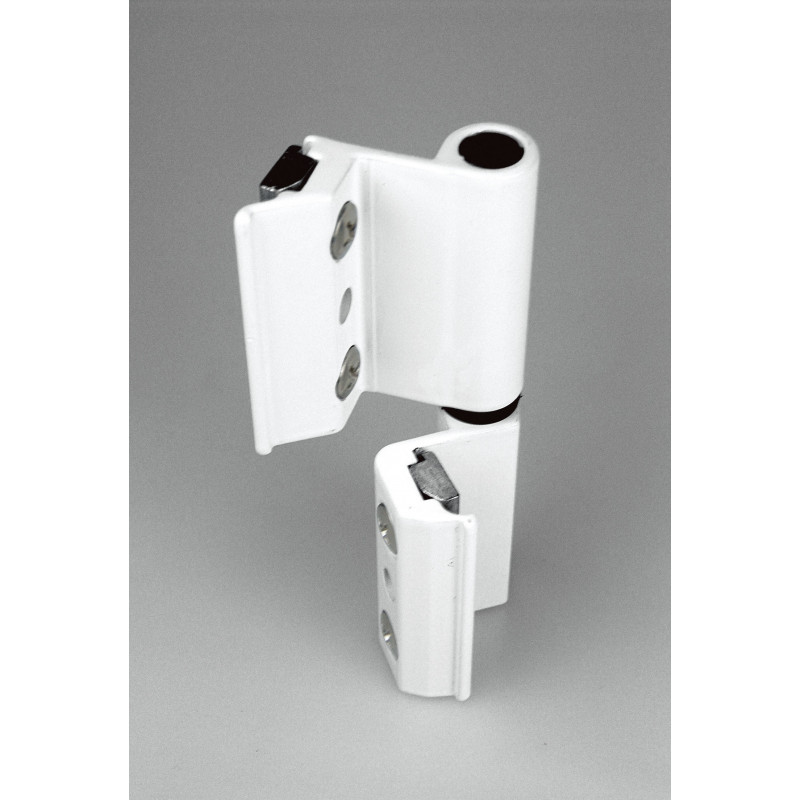

Reversible lift-off hinge CE-33
New product
Reversible lift-off hinge, European standard.
Fixing with zamak clamping shoes makes it very easy to install and adjust.
The security grub screw included in the clamping shoes gives it exceptional strength.
Materials:
- Extruded aluminium hinges.
- Zamak or stainless steel clamping shoes.
- Stainless steel hardware.
Capacity:
- For openings up to 2,000 x 1,000 mm.
- Up to 70 kg: 2 units.
- Up to 80 kg: 3 units.

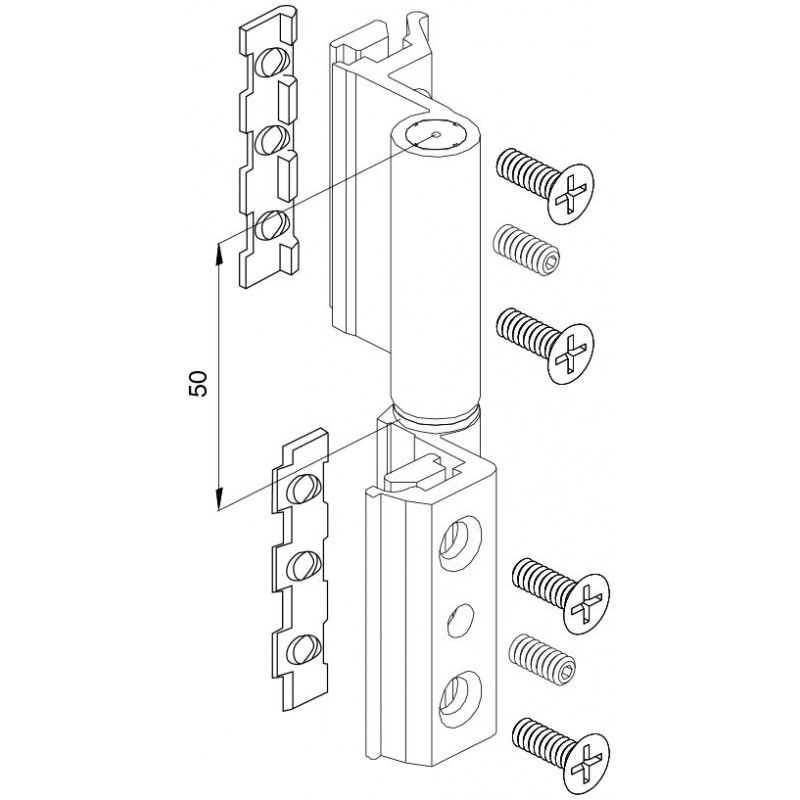

Contents:
- 2 fixing shoes.
- 4 raised countersunk screws M5x12.
- 2 security grub screws.
- 1 stainless steel shaft.
Finishes:
- Anodised.
- Powder coated in RAL colours.
Packaging:
Box of 125 units.
| Zinc-plated / Raw | Not available |
| Anodised matt silver | Available |
| Powder coated 9011 / 9016 | Available |
| Powder coated RAL / Anodised bronze / Stainless | Available |
No customer reviews for the moment.
