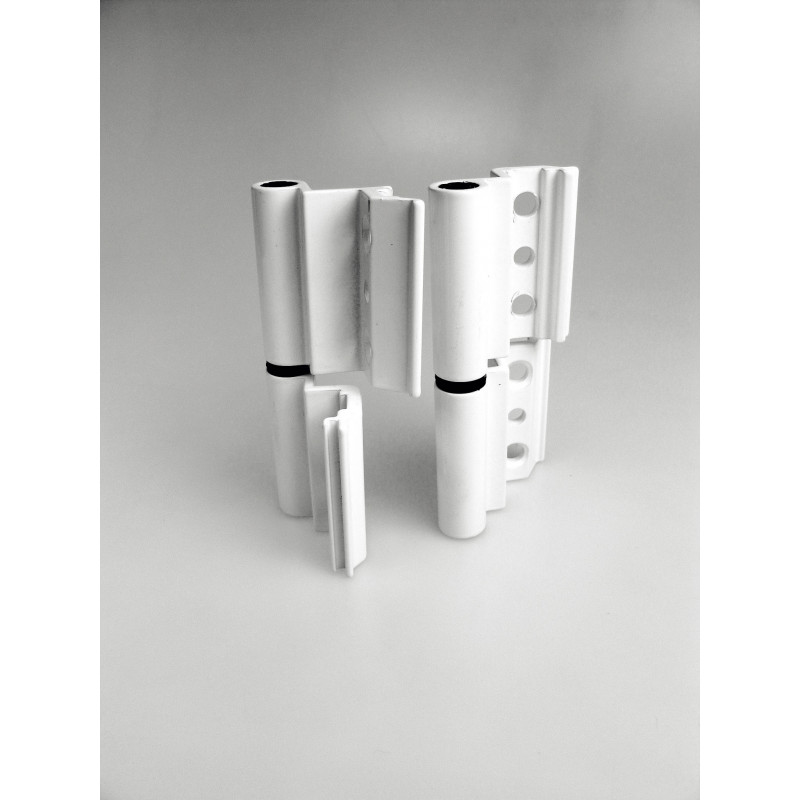

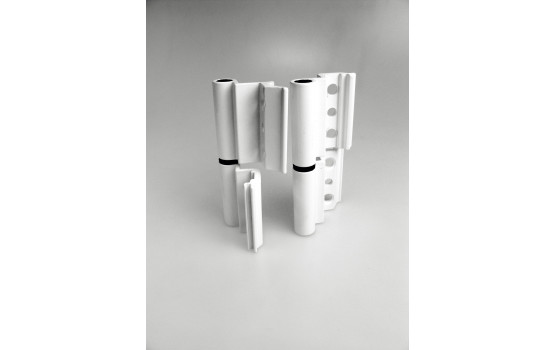

Reversible lift-off hinge CE-47
New product
Reversible lift-off hinge for the 3rd leaf of doors and windows, European standard.

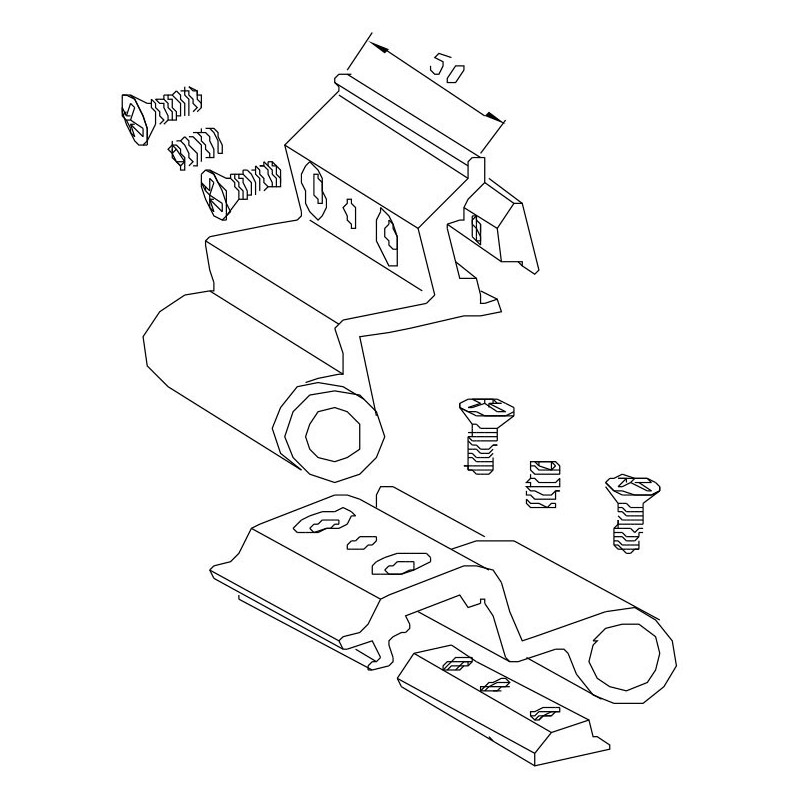

Fixing with zamak clamping shoes makes it very easy to install and adjust.
The security grub screw included in the clamping shoes gives it exceptional strength.
Materials:
- Extruded aluminium hinges.
- Zamak clamping shoes.
- Stainless steel hardware.
Capacity:
- For openings up to 2,000 x 1,000 mm.
- Up to 70 kg: 2 units.
- Up to 80 kg: 3 units.
Contents:
- 2 fixing shoes.
- 4 raised countersunk screws M5x12.
- 2 security grub screws.
- 1 stainless steel shaft.
Finishes:
- Anodised.
- Powder coated in RAL colours.
Packaging:
Box of 125 units.
| Zinc-plated / Raw | Not available |
| Anodised matt silver | Available |
| Powder coated 9011 / 9016 | Available |
| Powder coated RAL / Anodised bronze / Stainless | Available |
