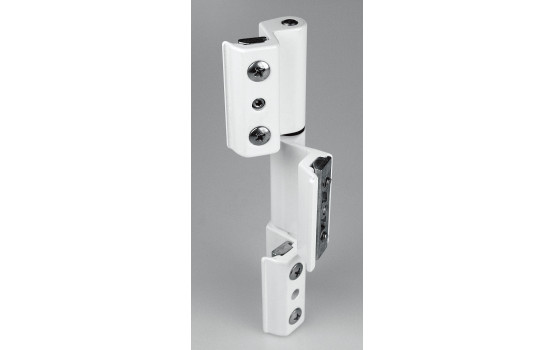

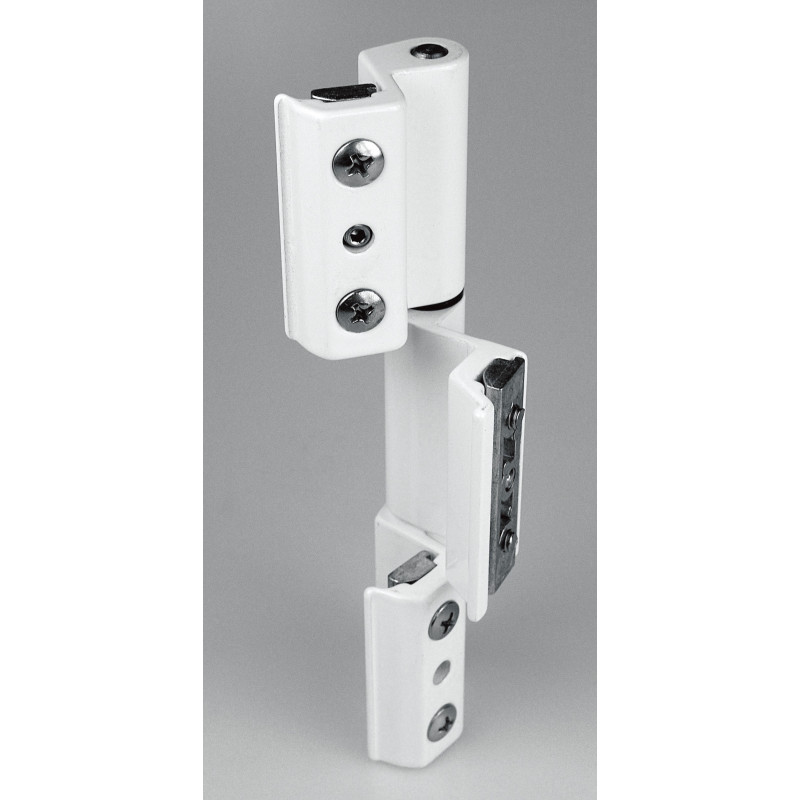

Reversible lift-off hinge CE-45
New product
Reinforced reversible lift-off three-part hinge for doors and windows, European standard.
Especially suitable for heavy windows and doors.
Fixing with zamak clamping shoes makes it very easy to install and adjust.
The security grub screw included in the clamping shoes gives it exceptional strength.
Materials:
- Extruded aluminium hinges.
- Zamak clamping shoes.
- Stainless steel hardware.
Capacity:
- For openings up to 2,000 x 1,000 mm.
- Up to 100 kg: 2 units.
- Up to 110 kg: 3 units.
Contents:
- 3 fixing shoes.
- 6 raised countersunk screws M5x12.
- 3 security grub screws.
- 1 stainless steel shaft.
Finishes:
- Anodised.
- Powder coated in RAL colours.
Packaging:
Box of 25 units
| Zinc-plated / Raw | Not available |
| Anodised matt silver | Available |
| Powder coated 9011 / 9016 | Available |
| Powder coated RAL / Anodised bronze / Stainless | Available |
