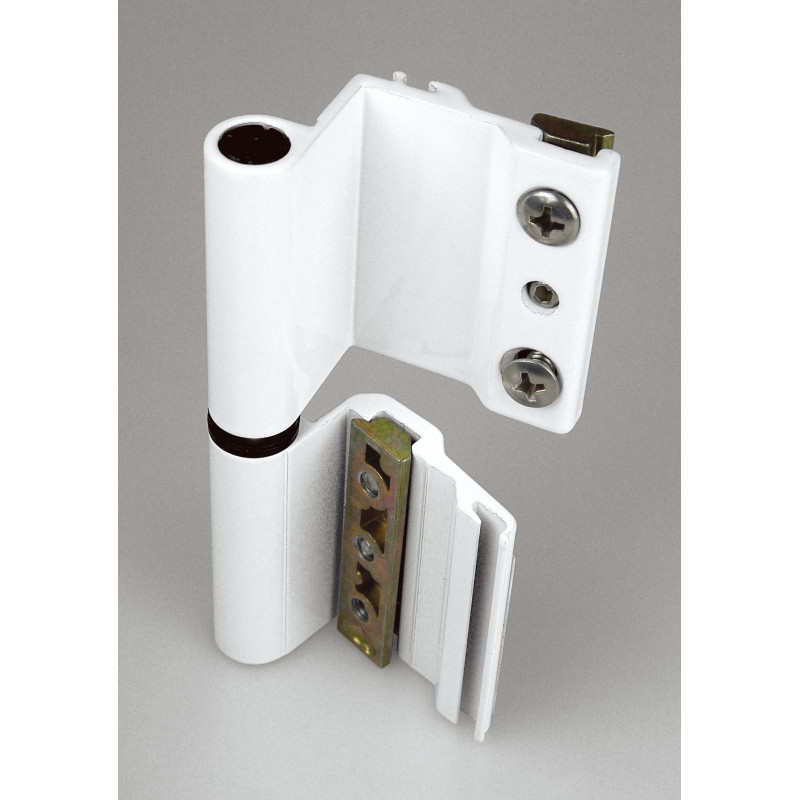

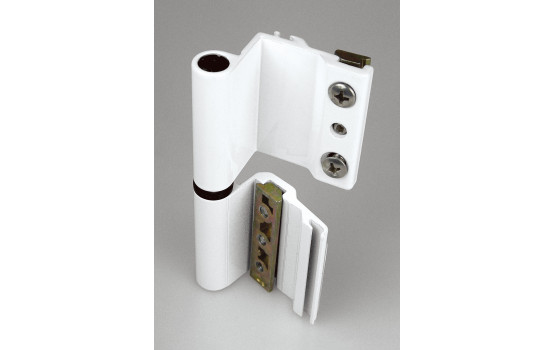

Reversible lift-off hinge PD-131
New product
Reversible lift-off hinge, Spanish standard.

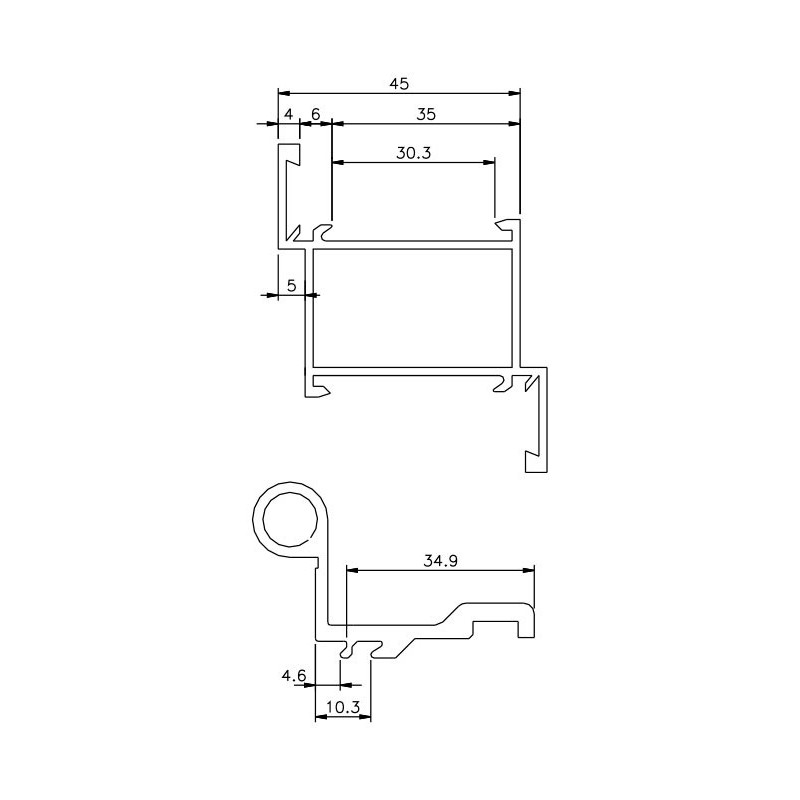

Suitable for INASA NC3252 series windows and doors.
Fixing with zamak clamping shoes makes it very easy to install and adjust.
The security grub screw included in the clamping shoes gives it exceptional strength.
Capacity:
- For openings up to 2,000 x 1,000 mm.
- Up to 60 kg: 2 units.
- Up to 70 kg: 3 units.

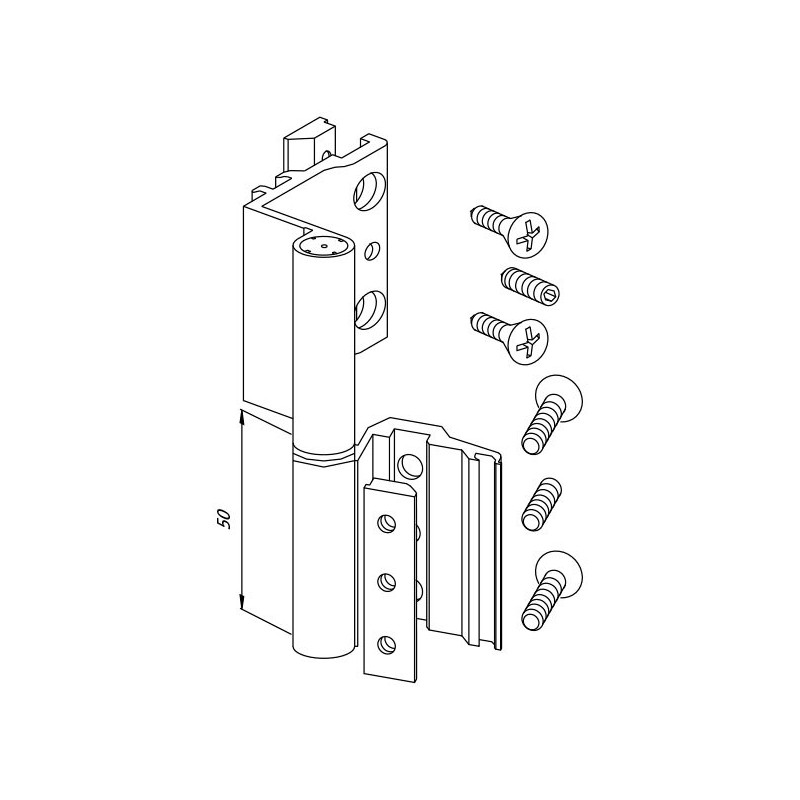

Contents:
- 2 fixing shoes.
- 4 raised countersunk screws M5x10.
- 2 security grub screws.
- 1 shaft.
Materials:
- Extruded aluminium hinges.
- Zamak clamping shoes.
- Stainless steel screws.
- Steel or stainless steel shaft.
Finishes:
- Anodised.
- Powder coated in RAL colours.
Packaging:
Box of 100 units.
