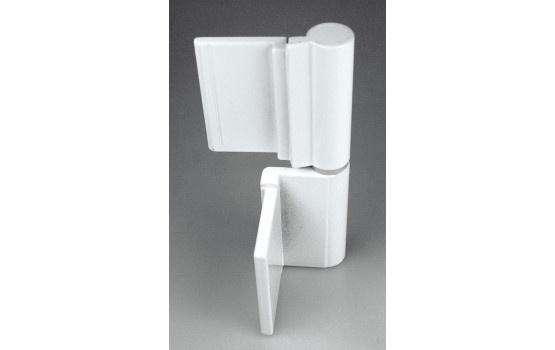

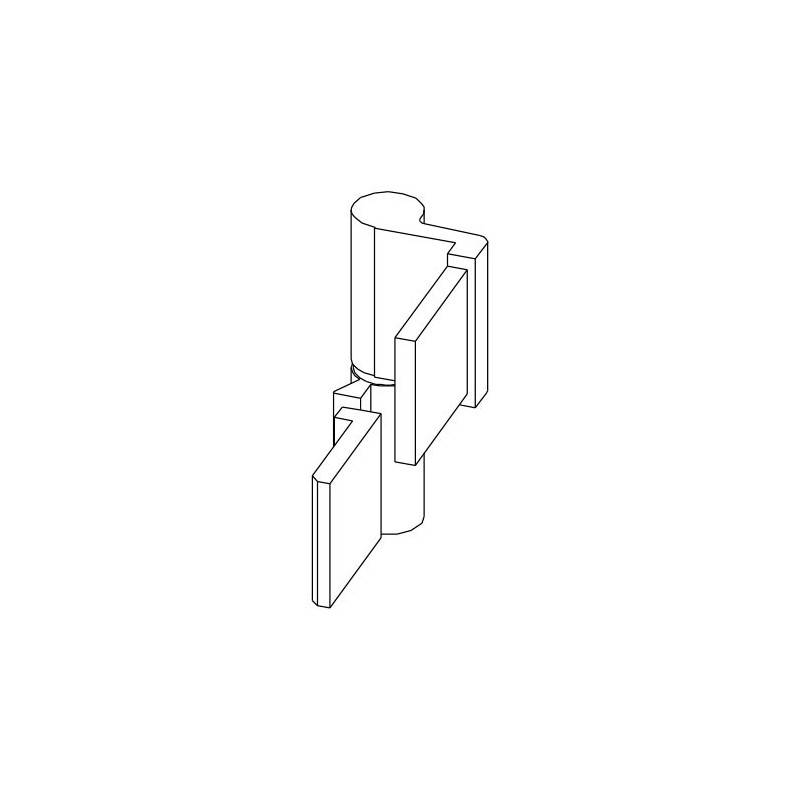

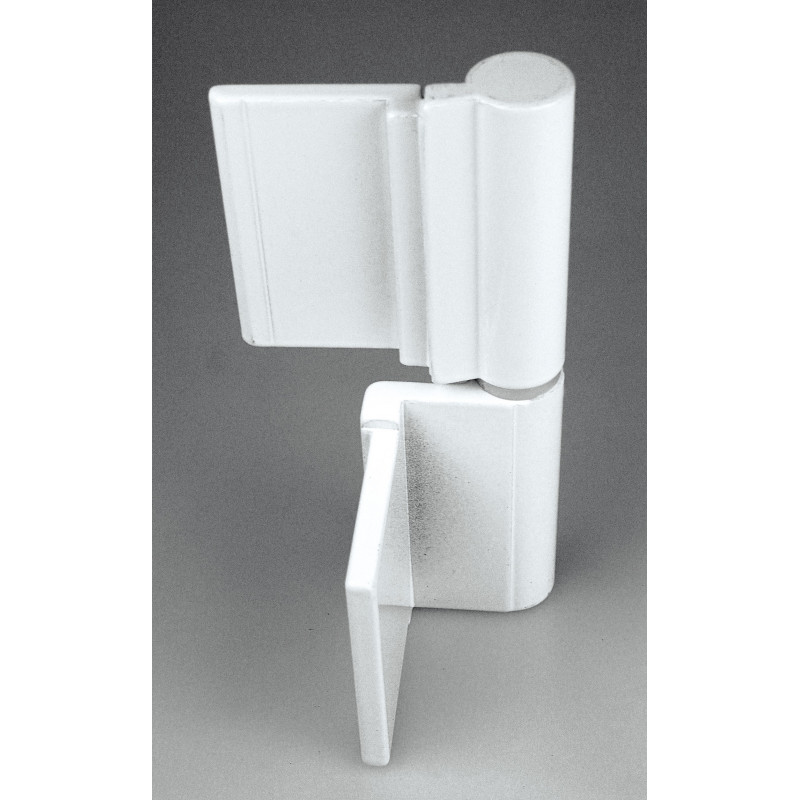

Recessed hinge F-70 70 mm
New product
Very strong recessed hinge.
Its large size and Ø8 mm shaft allow it to bear heavy loads.

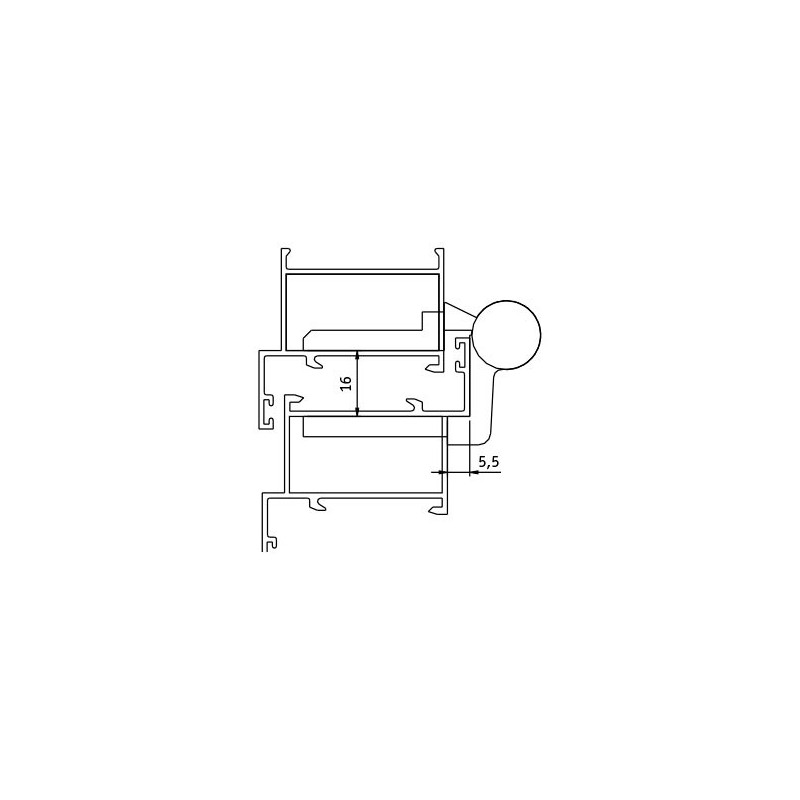

Suitable for windows and doors with 5.5 mm rebate and 16 mm gap.
Available in 70, 80, 100 and 120 mm.
Optionally supplied punched.
Features:
- Very strong surface-mounted hinge.
- Its large size and Ø8 mm shaft allow it to bear heavy loads.
- Available in 70 and 120 mm.
Materials:
- Extruded aluminium hinges.
- Steel or stainless steel shaft.
Finishes:
- Anodised.
- Powder coated in RAL colours.
Packaging:
- Box of 150 pcs (70 and 80 mm)
- Box of 100 pcs (100 and 120 mm)
| Zinc-plated / Raw | Not available |
| Anodised matt silver | Available |
| Powder coated 9011 / 9016 | Available |
| Powder coated RAL / Anodised bronze / Stainless | Available |
